North Hills統計資料數據總線MIL-STD-1553 藕合器

上架耗時：2021-09-06 17:00:48 瀏覽網頁：1669

North Hills的 MIL-STD-1553耦合器系列是對脈沖變壓器產品線的補充，可提供端接或非端接配置，以及各種各樣的比率、盒尺寸、單和多存根版本。

North Hills于2017年被DDC公司收購North Hills專業更專業的開發MIL-STD-1553的數據傳輸線和帶寬配電變壓器軟件，安全服務于軍事戰爭、航空運輸航天和化學工業手工制造餐飲市場迄今為止，North Hills是世界上主導者剩磁涂料統計數據網絡通訊、降躁，地板隔離防曬和走勢外理軟件North Hills成品用來作為考試和驗證通過專用工具。

西安市立維創展社會是North Hills的供應商商，給予North Hills車輛方向是指網絡帶寬配電電抗器，網絡帶寬巴倫配電電抗器，公測級回波衰減橋等，車輛原裝機國外，性能提高，單價優勢，歡迎辭服務咨詢。

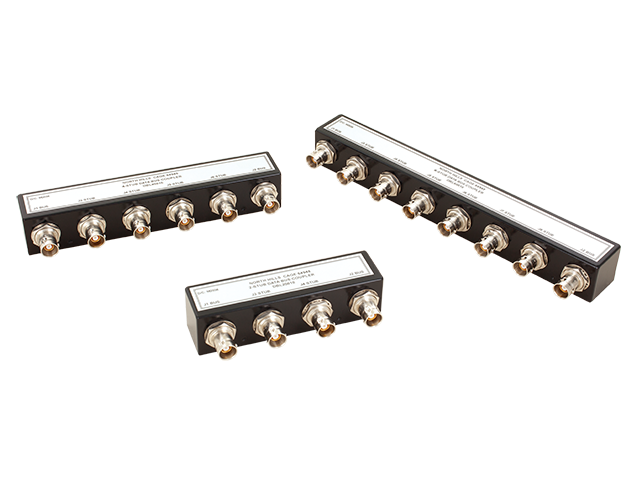

North Hills數據總線MIL-STD-1553 耦合器

Part Number	Description	Stubs	Style	Internal Termination	Mounting	Connector
DBL20010	Rack Mount Couplers	2	Box	None	Rack Mount	BJ77


DBL30010	Rack Mount Couplers	3	Box	None	Rack Mount	BJ77


DBL40010	Rack Mount Couplers	4	Box	None	Rack Mount	BJ77


DBL50010	Rack Mount Couplers	5	Box	None	Rack Mount	BJ77


DBL60010	Rack Mount Couplers	6	Box	None	Rack Mount	BJ77


DB01M01E	Box Type Single-Stub and Multi-Stub Coupler	1	Box		Through Hole	D-621-0012


DB02M01E	Box Type Single-Stub and Multi-Stub Coupler	1	Box		Through Hole	BJ71


DB03005	In-Line - Micro Coupler		In-Line	1		None


DB03M01E	Box Type Single-Stub and Multi-Stub Coupler	1	Box		Through Hole	BJ371


DB04M01E	Box Type Single-Stub and Multi-Stub Coupler	1	Box		Through Hole	BJ71


DB05M01E	Box Type Single-Stub and Multi-Stub Coupler	1	Box		Through Hole	BJ3150


DB10005	In-Line - Micro Coupler	1	In-Line	None		None


DB10105	In-Line - Thru-Hole Mounted Coupler	1	In-Line		Through Hole	None


DB10305	In-Line Mini and Sub-Miniature Coupler	1	In-Line		Through Hole	None


DB10310	In-Line MIL-STD-1553 Quik Clik Coupler	1	In-Line	1


DB10311	In-Line MIL-STD-1553 Quik Clik Coupler	1	In-Line	1


DB10320	In-Line MIL-STD-1553 Quik Clik Coupler	1	In-Line	1


DB10321	In-Line MIL-STD-1553 Quik Clik Coupler	1	In-Line	1


DB12005	In-Line - Micro Coupler	1	In-Line	1		None


DB12012	Box Type Single-Stub and Multi-Stub Coupler		Box	1	Through Hole	BJ71


DB12105	In-Line - Thru-Hole Mounted Coupler	1	In-Line	1	Through Hole	None


DB12305	In-Line Mini and Sub-Miniature Coupler	1	In-Line	1	Through Hole	None


DB16203-1	Ultra Compact Data Bus Box Coupler	1	Box	1	Through Hole


DB16203-2	Ultra Compact Data Bus Box Coupler	1	Box		Through Hole


DB16203-3	Ultra Compact Data Bus Box Coupler	2	Box	1	Through Hole


DB16203-4	Ultra Compact Data Bus Box Coupler	2	Box		Through Hole


DB20005	In-Line - Micro Coupler	2	In-Line			None


DB20010	Box Type Single-Stub and Multi-Stub Coupler	2	Box		Through Hole	BJ77


DB20015	In-Line Mini and Sub-Miniature Coupler	2	In-Line			None


DB20020	Box Type Single-Stub and Multi-Stub Coupler	2	Box		Through Hole	BJ371


DB20030	Box Type Single-Stub and Multi-Stub Coupler	2	Box		Through Hole	BJ157


DB20040	Box Type Single-Stub and Multi-Stub Coupler	2	Box		Through Hole	BJ3150


DB20105	In-Line - Thru-Hole Mounted Coupler	2	In-Line		Through Hole	None


DB20305	In-Line Mini and Sub-Miniature Coupler	2	In-Line		Through Hole	None


DB22005	In-Line - Micro Coupler	2	In-Line	1		None


DB22010	Internally Terminated Coupler	2	Box	1	Through Hole	BJ77


DB22015	In-Line Mini and Sub-Miniature Coupler	2	In-Line	1		None


DB22020	Internally Terminated Coupler	2	Box	1	Through Hole	BJ371


DB22030	Internally Terminated Coupler	2	Box	1	Through Hole	BJ157


DB22040	Internally Terminated Coupler	2	Box	1	Through Hole	BJ3150


DB22105	In-Line - Thru-Hole Mounted Coupler	2	In-Line	1	Through Hole	None


DB22305	In-Line Mini and Sub-Miniature Coupler	2	In-Line	1	Through Hole	None


DB23005	In-Line - Micro Coupler	2	In-Line	2		None


DB23010	Internally Terminated Coupler	2	Box	2	Through Hole	BJ77


DB23020	Internally Terminated Coupler	2	Box	2	Through Hole	BJ371


DB23030	Internally Terminated Coupler	2	Box	2	Through Hole	BJ157


DB23040	Internally Terminated Coupler	2	Box	2	Through Hole	BJ3150


DB30000	Printed Circuit Board Mounted Coupler	3	DDIP		PCB Mount	None


DB30005	In-Line - Micro Coupler	3	In-Line			None


DB30010	Box Type Single-Stub and Multi-Stub Coupler	3	Box		Through Hole	BJ77
