CINCON轉型器DIP / SMD 3-75W

發布消息時光：2022-03-14 16:40:05     瀏覽網頁：989

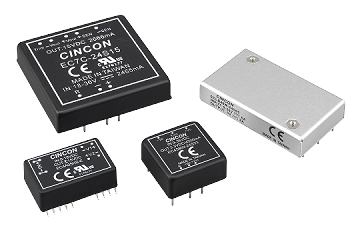

CINCON的DIP DC-DC轉變器具有著多種多樣封裝組織形式組織形式，諸如3W至15W的DIP24或SMD24打包封裝方法，10W至30W的1”x1”芯片封裝模式，10W至75W的2”x1”打包封裝行駛，2”x1.6”和2”x2”封裝狀態從15W到40W。CINCON兼具低于29年的研發運作經驗總結，強院于軌道道路交通、輕工業加工、ITE、5G中國移動、醫遼機械和家廷采用科技領域。

關于工業制造用途鄰域，CINCON幾乎所有的DIPDC-DC轉成器可以使用工藝制作用各個領域。

這對跌路公共交通運用研究方向，有常用EN50155細則的DIP轉化成器，如DIP248W和10W、2”x1”打包封裝方法20W和40W。最后，CINCON供給2”x1”、20W、18:1超長輸進范圍之內DC-DC轉換成器，主要包括應運系統化的不少分布不均式電流值。

DIP改變器，DC到DC供電加工供應商

CINCON結構設計和加工制造具備餐飲國家行業標準規范和引腳排序的3W-75WDC/DCDIP轉為器。亮點是轉化率高、上班溫度高、鍵入使用范圍寬。CINCON要不是各種各樣的廣泛應用研究方向提拱非隔開和高隔開DC/DC轉換成器。北京市市立維創展科技創新是CINCON供電摸塊的微商代理供應商商，作為CINCON主機電源模塊電源的DC-DC改變器、AC-DC主機電源、LED電源線等，軟件原裝機入口，高質量安全保障，其極具價錢優勢可言，的歡迎質詢

寶貝詳情知道CINCON24v電源請點擊率：//yhme.cn/article/2177.html


18:1 Input Range

ModelPowerInput VoltageOutput VoltageFeaturesDimensions (Inch)
NEWEC7BW1820W8.5~160V12V, 15V, 5V, ±12V, ±15V, ±24V

3KVac Isolation
  UL62368-1
  EN45545-2
  EN50155 Compliant

2.00x1.00x0.40(DIP)
4:1 Input Range

ModelPowerInput VoltageOutput VoltageFeaturesDimensions (Inch)

EC3AW3W18~72V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V500/1.5K/3KVdc Isolation

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC4AW6W18~72V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5K/3KVdc Isolation

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC6AW8W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN50155 Compliant

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC2SBW10W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5KVdc Isolation1.00x1.00x0.40(DIP)

EC4BW10W18~72V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500Vdc Isolation
  EN55022 Class A

2.00x1.00x0.40(DIP)
NEWEC7AW10W18~74V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V

3KVdc Isolation
  EN55032 Class A

1.25x0.80x0.40(DIP24)

EC6AW-11010W43~160V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

3KVdc Isolation
  UL60950-1 & CB
  EN45545-2
  EN50155 Compliant

1.25x0.80x0.50(DIP24)

EC8AW15W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
  EN55032 Class A

1.25x0.80x0.40(DIP24)

EC3SBW15W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5KVdc Isolation1.00x1.00x0.40(DIP)

EC5BW15W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)

EC5C15W18~72V, 9~36V12V, 15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V,   ±15V, ±5V

500Vdc Isolation
  EN60950-1

2.00x2.00x0.40(DIP)

EC1SC20W18~72V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5VEN55022 Class A2.00×1.60×0.45(DIP)

EC4SBW20W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V1.5KVdc Isolation1.00x1.00x0.40(DIP)

EC7BW-11020W43~160V12V, 15V, 5V, ±12V, ±15V

3KVdc Isolation
  UL60950-1
  EN45545-2
  EN50155 Compliant

2.00x1.00x0.40(DIP)

EC7BW20W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN45545-2
  EN50155 Compliant

2.00x1.00x0.40(DIP)
NRNDEC3SCW30W18~75V, 9~36V12V, 15V, 3.3V, 5V

1.5KVdc Isolation
  EN60950-1

2.00×1.60×0.40(DIP)

EC5SBW30W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V1.5KVdc Isolation1.00x1.00x0.40(DIP)
NRNDEC6E30W18~72V, 9~36V+5/+12/-5V, 12V, 15V, 5/±12V, 5/±15V, 5V,   ±12V, ±15V500Vdc Isolation2.56x3.00x0.83(DIP)

EC9BW30W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V1.5KVdc Isolation2.00x1.00x0.40(DIP)

ECLB40W40W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
  With Mounting Inserts

2.05x1.20x0.40(DIP)

ECLB40W-11040W43~160V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±24V

3KVdc Isolation
  UL60950-1
  EN45545-2
  EN50155 Compliant

2.05x1.20x0.40(DIP)

ECLB60W60W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
  With Mounting Inserts

2.05x1.20x0.40(DIP)
NEWECLB75W75W18~75V, 9~36V12V, 15V, 5V, ±12V, ±15V, ±24V

2.25KVdc Isolation
  With Mounting Inserts

2.05x1.20x0.40(DIP)
2:1 Input Range

ModelPowerInput VoltageOutput VoltageFeaturesDimensions (Inch)

EC3A3W18~36V, 36~72V, 4.5~6V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC3AB3W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  EN55022 Class B
  UL60950-1

1.25x0.80x0.50(DIP24)
  1.25x0.80x0.55(SMD24)

NRNDEC3BB7.5W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1500Vdc Isolation
  EN55022 Class B

2.00x1.00x0.40(DIP)

EC3A-E3W18~36V, 36~72V, 4.5~9V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  EN55032 Class A
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)
  1.25×0.80x0.41(SMD24)


EC4A6W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC4AB6W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  EN55022 Class B
  UL60950-1

1.25x0.80x0.50(DIP24)
  1.25x0.80x0.55(SMD24)


EC4A-E6W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  EN55032 Class A
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)
  1.25×0.80x0.41(SMD24)


EC6A7.5W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC2SB10W18~36V, 36~75V, 4.7~9V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5KVdc Isolation

1.00x1.00x0.40(DIP)
  1.00x1.00x0.36(SMD)


EC4BE10W18~36V, 36~72V, 9~18V12V, 15V, 5V, ±12V, ±15V, ±5V

500Vdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)

EC4BU10W18~36V, 36~75V, 4.7~9V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)

EC7A10W18~36V, 36~75V, 9~18V12V, 15V, 2.5V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC3SB15W18~36V, 36~75V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5KVdc Isolation

1.00x1.00x0.40(DIP)
  1.00x1.00x0.36(SMD)

NRNDEC3C15W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V500Vdc Isolation2.00x2.00x0.40(DIP)

EC5BU15W18~36V, 36~75V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)

EC5BE15W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500Vdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)

EC7B20W18~36V, 36~75V, 9~18V1.8V, 12V, 15V, 2.5V, 3.3V, 5V, ±12V,   ±15V1.5KVdc Isolation2.00x1.00x0.40(DIP)

EC6C30W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V,   ±15V, ±5V

500Vdc Isolation
  EN60950-1

2.00x2.00x0.40(DIP)

EC7C40W18~36V, 36~75V, 9~18V12V, 15V, 2.5V, 3.3/5V, 3.3/±12V,   3.3/±15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V, ±15V

1.5KVdc Isolation
  EN60950-1

2.00x2.00x0.40(DIP)
High Isolation 6KV

ModelPowerInput VoltageOutput VoltageFeaturesDimensions (Inch)

EC4AW-H66W18~72VDC, 9~36VDC12V, 5V, ±12V, ±15V

6KVdc Isolation
  EN55032 Class A
  5uA Leakage Current

1.25x0.80x0.40
  (DIP24)

+/-10% Input Range

ModelPowerInput VoltageOutput VoltageFeaturesDimensions (Inch)

EC3AE3W12V, 24V, 28V, 48V, 5V12V, 15V, 5V, ±12V, ±15V

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)
