Features
- 380 – 520 MHz
- Low Loss
- High Isolation
- Tight Amplitude Balance
- 90 deg Quadrature
- Surface Mountable
- CTE Matched
- NMT 450 Band
- Tape and Reel Option
Specifications

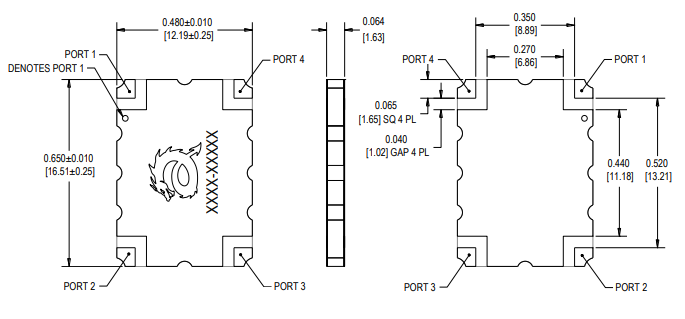

- Size: .650 x .480 inches
- Frequency: 380-520 MHz
- Power: 200 W
- Insertion Loss: .20 dB
- Amplitude Balance: ± .3
- Isolation: 25 dB
- VSWR: 1.18
- Phase Balance: ± 2
