?Q30HE-900R定向耦合器

為重要指標

Q30HE-900R定向耦合器

聲音頻率：0.7 – 1.2 GHz交叉耦合：30.兩分貝±兩分貝解耦平淡度：±0.3dB走向性：18噪音分貝駐波比：1.10:1嵌入消耗：0.1dB工率：355瓦評估報告格式板722-0006-05-E01定貨時間間隔：6-8周

品牌：Electro-Photonics

廠品商品詳情頁介紹

700-1200 MHz Directional Coupler

The Q30HE-900R is a broadband, bi-directional coupler with high directivity and high power handling. It is suitable for LTE mobile broadband, UHF television, GSM, and more…

Specifications

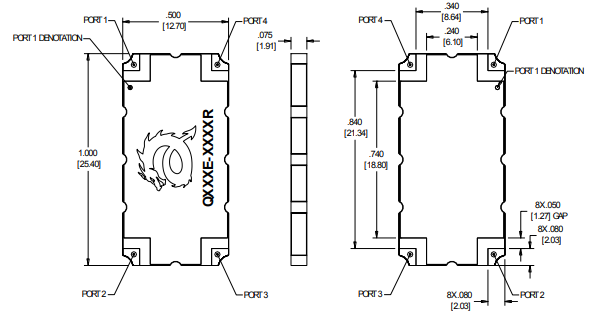

Size: 1.00 x 0.50 inches
Frequency: 0.7 – 1.2 GHz
Coupling: 30.5 dB ± 1 dB
Coupling Flatness: ± 0.3 dB
Directivity: 18 dB
VSWR: 1.10:1
Insertion Loss: 0.1 dB
Power: 355 W
Evaluation board 722-0006-05-E01
