?Q15HK-900R定向耦合器
?Q15HK-900R定向耦合器
更重要因素

Q15HK-900R定向耦合器

頻繁 :0.8 – 1 GHz交叉耦合:14音貝±1.0音貝方向上性:16dB駐波比:1.42:1加入損耗率:0.3dB公率:50瓦開展板722-0006-07-E01備貨生長期:6-8周

品牌:Electro-Photonics

物料寶貝詳情解紹

800-1000 MHz Directional Coupler

The Q15HK-900R is a broadband, bi-directional coupler with high power handling. It is suitable for AWS, DCS, PCS, UMTS, CDMA , IMT and more…

Specifications

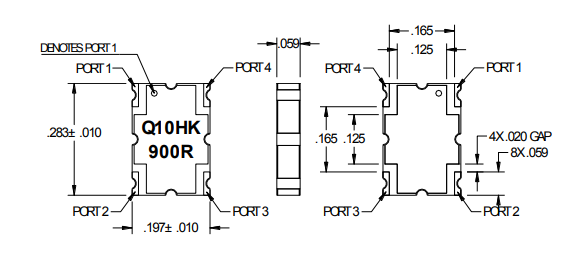

  • Size: 0.283 x 0.197 inches
  • Frequency: 0.8 – 1 GHz
  • Coupling: 15 dB ± 1.0 dB
  • Directivity: 16 dB
  • VSWR: 1.42:1
  • Insertion Loss: 0.3 dB
  • Power: 50 W
  • Evaluation board 722-0006-07-E01
