?Q7P5HG-2100R定向耦合器
?Q7P5HG-2100R定向耦合器
主要基本參數

Q7P5HG-2100R定向耦合器

規律：1.8 – 2.2 GHz合體：7.分之五貝±0.7分之五貝方問性：2四分貝駐波比：1.15:1復制到耗費：0.15dB電率：175瓦評詁板722-0006-03-E01訂購過渡期：6-8周

品牌：Electro-Photonics

護膚品詳細信息了解

1800-2200 MHz Directional Coupler

The Q7P5HG-2100R is a broadband, bi-directional coupler with high power handling. It is suitable for AWS, DCS, PCS, UMTS, CDMA , IMT and more…

Specifications

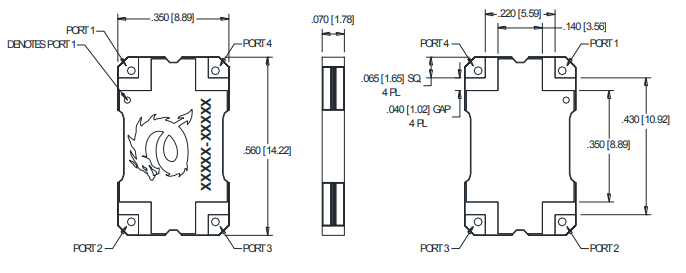

  • Size: .560 X .350 inches
  • Frequency: 1.8 – 2.2 GHz
  • Coupling: 7.5 dB ± 0.75 dB
  • Directivity: 24 dB
  • VSWR: 1.15:1
  • Insertion Loss: 0.15 dB
  • Power: 175 W
  • Evaluation board 722-0006-03-E01
