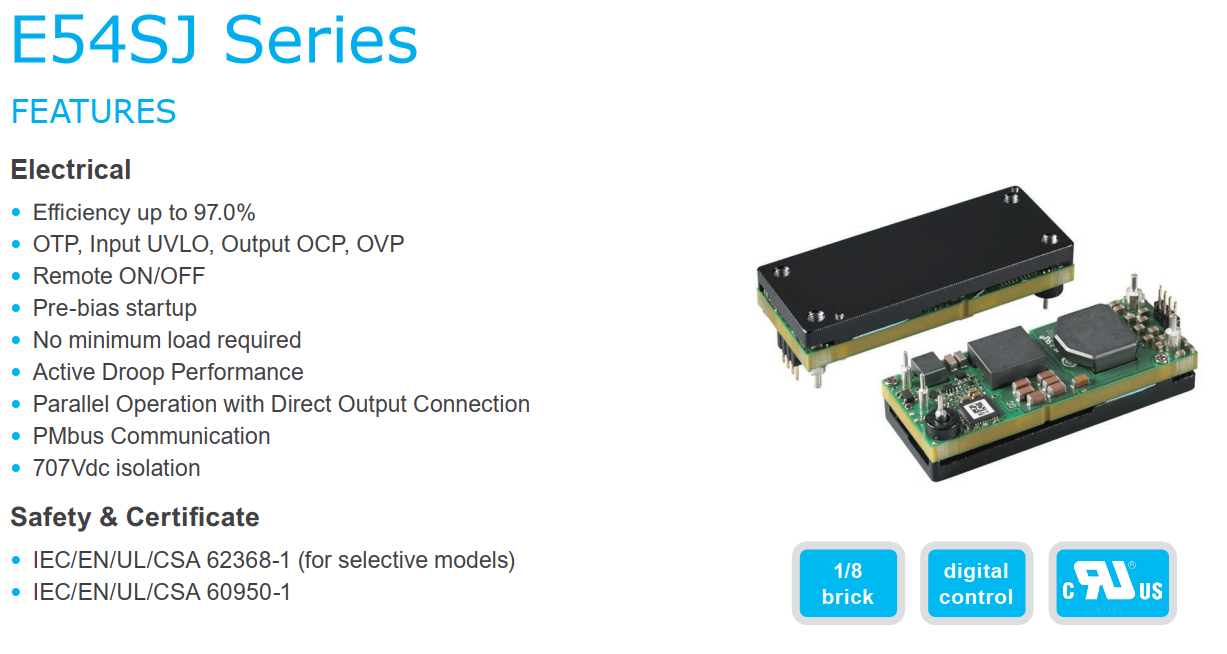

E54SJ12040隔離1/8磚DC-DC大電流電源模塊
E54SJ12040隔離1/8磚DC-DC大電流電源模塊
重點參數指標

輸入電壓：40-60V

輸出電壓值電壓值：12V輸出的功率：40.7A輸出功率: 480W效果：96.7%

訂貨周期：8-10周

品牌：DELTA

的產品商品詳情頁簡紹


Part Number Input
Voltage		Output
Voltage		Vo trim
range		Output
Current		Output
Power 		Efficiency Isolation Voltage without heat spreader Size (LxWxH)
E54SJ3R350 40~60V 3.3V 2.64~3.63 50A 165W 96.7% 707V 58.4x22.8x14.5 mm
E54SJ05040 40~60V 5V - 40A 200W 96.0% 707V 58.4x22.8x12.2 mm
E54SJ12033 40~60V 12V - 33.9A 400W 97.0% 707V 58.4x22.8x14.5 mm
E54SJ12040 40~60V 12V - 40.7A 480W 96.7% 707V 58.4x22.8x14.5 mm
